Respiratory Mechanics Evaluation Kit

The Respiratory Mechanics Evaluation Kit was designed to provide the medical device manufacturer with all the tools necessary to incorporate our Respiratory Mechanics Module into their new or existing products.  The Kit includes:



In a typical example, a patient monitor manufacturer desires to add Respiratory Mechanics monitoring to a new ventilator.  After researching the market, the manufacturer decides that a system compatible with a fixed orifice flow sensor (like the EZ-Flow Sensor) is desirable for proximal monitoring and minimal per-patient cost.

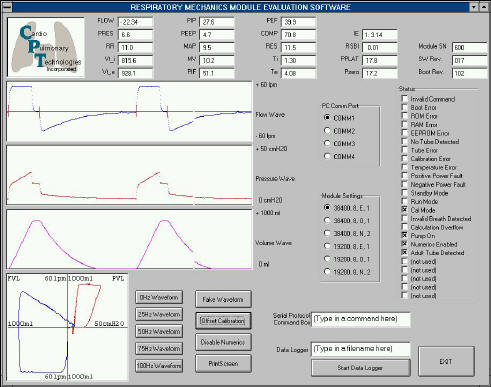

The manufacturer finds our website and decides to purchase the Respiratory Mechanics Evaluation Kit.  The PC software is loaded, and the engineers begin to evaluate the functionality of the Module.  Below is a screen capture of the demonstration software.





After observing the basic functionality of the Respiratory Mechanics Module, the engineers begin to plan the integration of the Module into the final product.  The engineers use the Communication Protocol included with the Kit to send commands and observe responses from the Module.  The manufacturer decides to proceed with the product development, and places an order for more Modules to build prototypes and clinical test units.  If desired, the Modules can be ordered in custom configurations:

  • 19,200 or 38,400 baud

  • even, odd or no parity

  • waveform datarates from 0 to 100Hz

  • enabled or disabled transmission of numeric parameters

  • with or without purge pump

  • with or without tubing detection

TreyMed looks forward to working with you on your next Respiratory Mechanics project!
